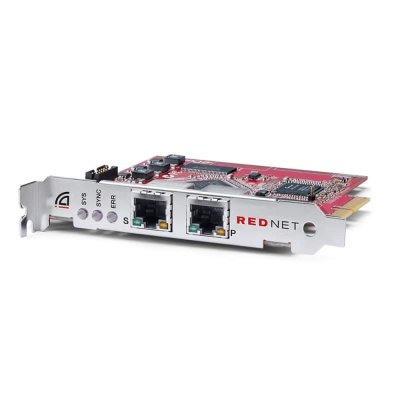

FOCUSRITE RedNet PCIeR Dante Interface
Description
RedNet PCIeR provides bi-directional Dante audio connectivity to Mac* or Windows computers, with full network redundancy. The card supports up to 128 channels of 24-bit bidirectional audio at 44.1, 48, 88.2 and 96 kHz sample rates, and 64 channels at 176.4 and 192 kHz. RedNet PCIeR mounts via a standard 4-lane PCI Express card slot. ASIO and Core Audio drivers are provided.
RedNet PCIeR uses the Dante audio-over-IP implementation, which can carry up to 512 bidirectional audio channels over a standard Gigabit (or higher) Ethernet link. Software is provided for the routing, controlling, and configuration of the card and attached interfaces, including remote control of reference level, selection of preferred master clock, and sample rate.
RedNet PCIeR includes fully redundant network access via dual rear panel RJ45 ports and will switch between primary and secondary networks automatically based on network availability.
*RedNet PCIe and PCIeR cards are not compatible with Apple Silicon processors (also known as 'M1' systems). They are, however, still compatible with Intel-based Mac computers. Please check the processor type before purchasing any new Mac systems if you're planning on using the RedNet PCIe and PCIeR cards.
Key Features:
Ultra low latency Dante audio interface for Mac and Windows computers
128 inputs / 128 outputs at 44.1, 48, 88.2 and 96kHz (64 I/O at 176.4 and 192kHz)
Supports high-quality 24-bit/192kHz audio
Compatible with most modern computers with a standard 4-lane PCI Express card slot
