SVS Prime Satellite ตู้ลำโพง

Engineering a small speaker to sound massive while maintaining detail and refinement means compromises arent an option. Every aspect of the Prime Satellite speakers was designed for sonic excellence. From the premium grade driver and sophisticated SoundMatch crossover to the extra-thick baffle, internal bracing, and FEA optimized tweeter diffuser, the Prime Satellite speakers design and engineering credentials put it in the realm of much costlier, and much larger speakers.

Frequency Response / Acoustic Data:
Rated bandwidth: 69 Hz-25 kHz (±3 dB)
Nominal impedance: 8 ohms.
Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz)
Recommended amplifier power: 20-150 watts.
Speaker Specs:
Satellite Loudspeaker

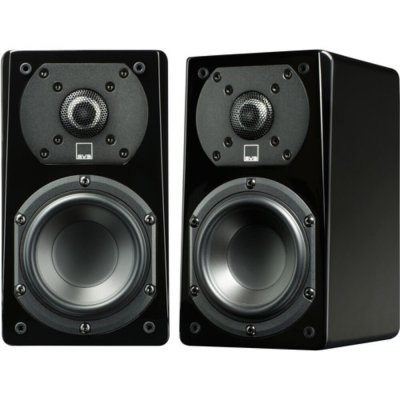

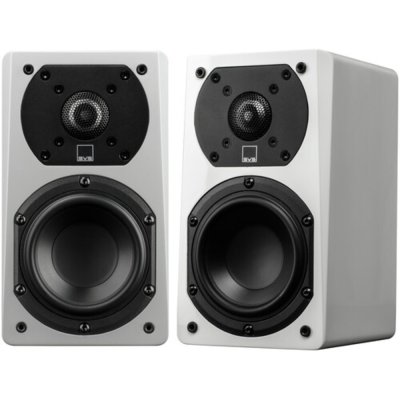

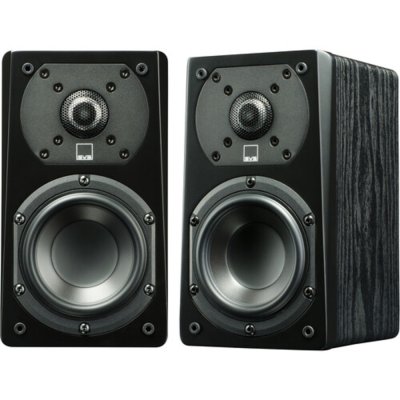

Premium Black Ash, Piano Gloss Black, and Piano Gloss White finish options

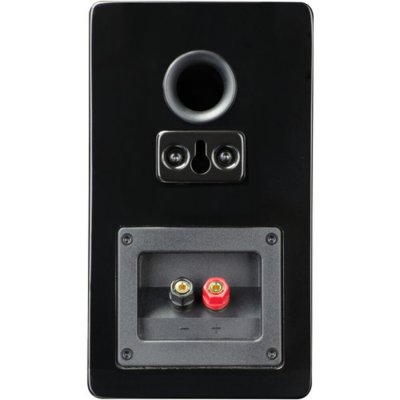

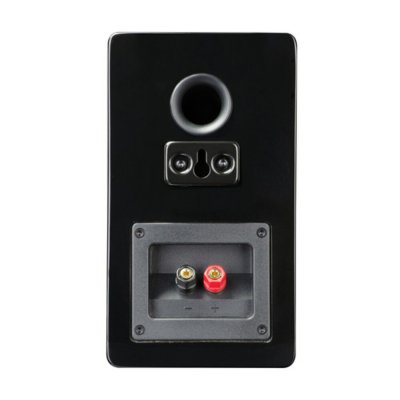

Single set of 5-way binding posts
1 wide-flared rear-firing port

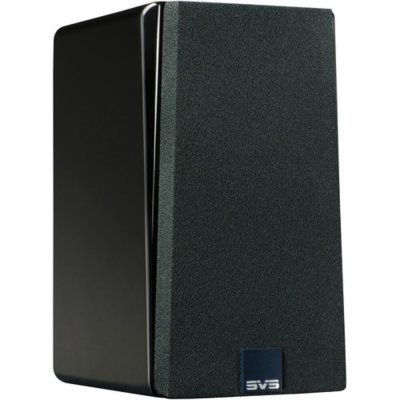

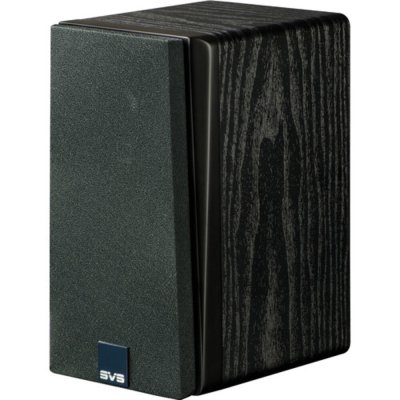

Cloth grille with pin/cup retention system
Elastomer stick-on bumper feet (adds 3mm to height)
Keyway bracket for easy and convenient wall mounting (includes extra bumper pads for wall stand-off)
Cabinet Dimensions: 8.75" (H) X 4.9" (W) X 6" (D)
Overall Dimensions: 8.85" (H) X 4.9" (W) X 6.3" (D) (includes grille and bumper feet)
Shipped Dimensions-2 Pack: 11.7" (H) X 13.9" (W) X 8.9" (D)
Shipped Dimensions 3 Pack: 11.7" (H) X 20.3" (W) X 8.9" (D)
Weight Unboxed: 6.5 pounds
Shipped Weight 2 Pack: 14.7 pounds
Shipped Weight 3 Pack: 21.7 pounds
Driver Specs:
1 Aluminum Dome Tweeter:
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome for exceptional transient response
4.5 Midrange Driver:
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
Crossover:
2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
Crossover network delivers outstanding phase coherency and time domain behavior
Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
Cabinet:
Acoustically transparent and FEA optimized grilles minimize diffraction
FEA-optimized cabinet and bracing eliminates resonances
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
