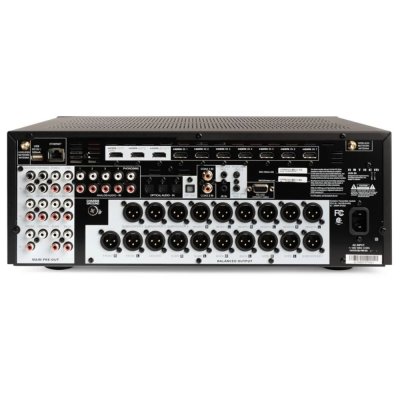

Anthem AVM 90 8K 15.4 A/V Pre-Amplifier/Processor

PREAMPLIFIER (MEASURED AT XLR OUTPUT)

Maximum Output (<0.1% THD)
10.7 VRMS, Subwoofer 11 VRMS
Frequency Response
20 Hz 35 kHz (+/-0.2dB)
Frequency Response, Analog-Direct
20 Hz 80 kHz (+0, -2 dB)
THD+N (4 Vrms output)
-102 dB
S/N Ratio (4 Vrms output, IEC-A filter)
115 dB
XLR Configuration
Pin 1: Ground, Pin 2: Positive, Pin 3: Negative

POWER CONSUMPTION
Typical Load
60 W
Standby
0.3 W
Standby IP Control Enabled
1.8 W
Standby HDMI Bypass Enabled
4.9 W

DIMENSIONS
Height (without feet)
6" (15.24 cm)
Height with Rackmount Kit
4U
Width
17" (43.18 cm)
Depth (including wifi ant not power cord)
14-1/2" (36.4 cm)
Weight
22.1 lbs, 10.1 Kg

POWER REQUIREMENT
120 V version

In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version

In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
