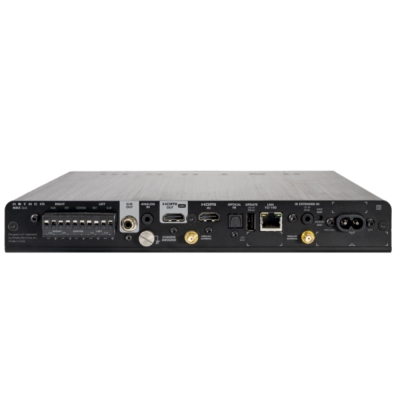

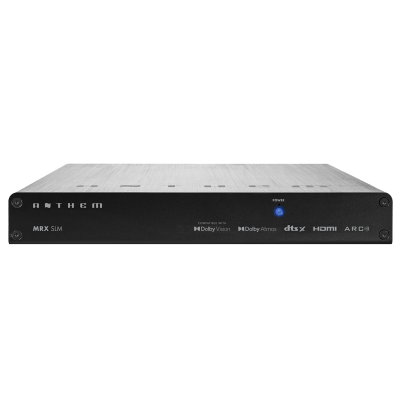

Anthem MRX-SLM

SPEAKER OUTPUT (0 DBFS DIGITAL INPUT, 1 W OUTPUT INTO 8 OHMS)
Frequency Response 20 Hz 20 kHz +/-0.5dB
S/N Ratio (IEC-A filter) > 92 dB
THD+N ratio (1 kHz, 20-22 kHz filter) < -87 dB SPEAKER OUTPUT (1 VRMS ANALOG INPUT, 1 W OUTPUT INTO 8 OHMS) Frequency Response 20 Hz 20 kHz +/-0.5dB S/N Ratio (IEC-A filter) > 88 dB
THD+N ratio (1 kHz, 20-22 kHz filter) < -85 dB
SPEAKER IMPEDANCE
Compatible with 4 Ohms or
higher impedance.
MAXIMUM CONTINUOUS OUTPUT (0.1% THD)
Channels 1-5, Two Driven into 8 Ohms 50 W
Channels 1-5, Two Driven into 4 Ohms 92 W
POWER CONSUMPTION
Typical Load (1/8th power, all
channels driven into 8 ohms)
< 50 W
Standby (IP Control Enabled) < 2 W
Standby (IP Control + HDMI Bypass
Enabled)
< 5 W
DIMENSIONS
Height (without feet) 1.5 / 3.8 cm
Height (with feet) 1.7 / 3.8 cm
Height (with rackmount kit) 1U / 1.75 / 4.4 cm
Width 11 / 27.9 cm
Width (with rackmount Kit) 19 / 43.2 cm
Depth 11 / 27.9 cm
Depth (including power cord) 13 / 33.0 cm
WEIGHT
6.6 lb / 3.0 kg
