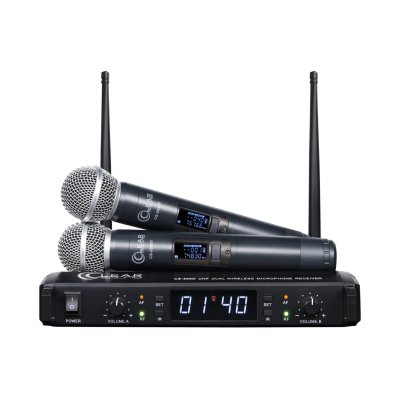

Clearsound CS-500 / UHF Dual Handheld Wireless Microphone

Description
UHF 748.3 ~ 757.7 MHz Frequency Range. (Brand for Thailand Regulation)
Frequency Response 30Hz ~ 20kHz ±2dB
Pre-Set 40CH (2*20CH) Selectable Frequencies.
The transmitter uses LCD display to indicate frequency and battery level and so on.
Up To 50 Meters Line-of-Sight Range.
Ideal for large and small stages, Clubs Music Entertainment, Conference, Meeting, Training, Speeches and karaoke Etc.

FEATURE
UHF 748.3 ~ 757.7 MHz Frequency Range. (Brand for Thailand Regulation)
Frequency Response 30Hz ~ 20kHz ±2dB
Pre-Set 40CH (2*20CH) Selectable Frequencies.
Unique digital pilot technology, no crosstalk disturbance even same frequency.
An efficient battery energy design that allows the microphone to be used continuously for longer periods of time.
IR Sync Downloading the Frequency from Receiver.
The transmitter uses LCD display to indicate frequency and battery level and so on.
Single-chip microphone amplifier, DSP-based audio processor with multi-frequency selection function.
Up To 50 Meters Line-of-Sight Range.
Ideal for large and small stages, Clubs Music Entertainment, Conference, Meeting, Training, Speeches and karaoke Etc.

specification

SYSTEM
Carrier Frequency
UHF 748.5 757.5 MHz
Available Channels
40CH (2*20CH)
Bandwidth
9.4 MHz
Dynamic Range
96dB
Total Harmonic Distortion
<0.3%
Frequency Response
30Hz ~ 20kHz ±2dB
Audio Output Level

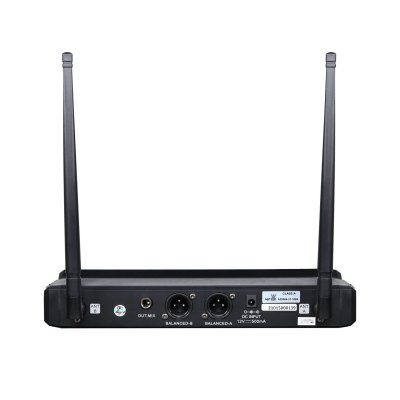

1 x 6.3mm, 2 x XLR balance output

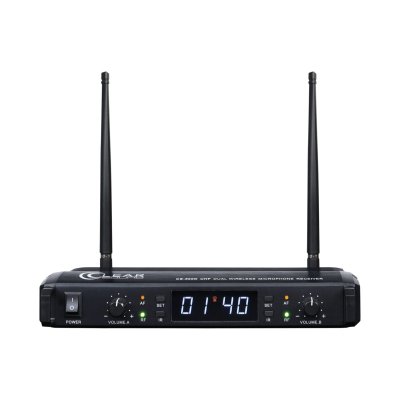

CS-500DR : DUAL RECEIVER

Frequency Response
30Hz ~ 20kHz ±2dB
Power Supply
DC 12V 500mA
Consumption Power
<3watts
Signal/Noise Ratio
96dB
Receiving Sensitivity
-95dBm

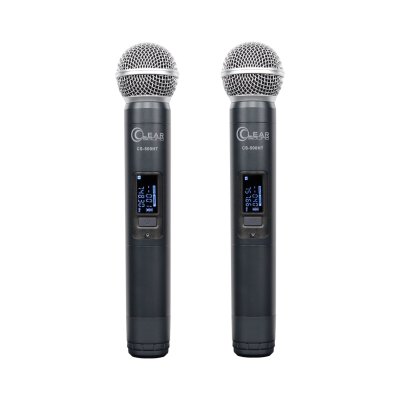

CS-500 :  TRANSMITTER

Carrier Frequency
UHF 748.5 757.5 MHz
Bandwidth
9.4 MHz
Frequency Response
30Hz ~ 20kHz ±2dB
Frequency Switch
IR SYNC
Microphone Type
Dynamic
Polar Pattern
Cardioid Directional
Output Power
10mW
Harmonic Radiation
<-50dBc
Battery Voltage
3V (2×1.5V AA Battery)
Battery Life
approx. >5 hours
