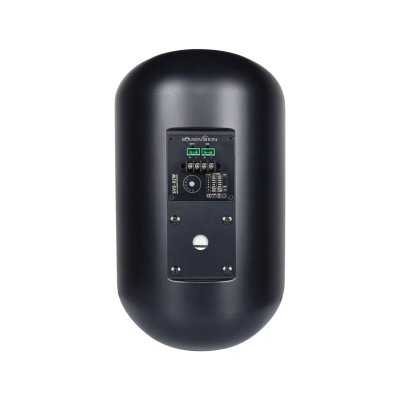

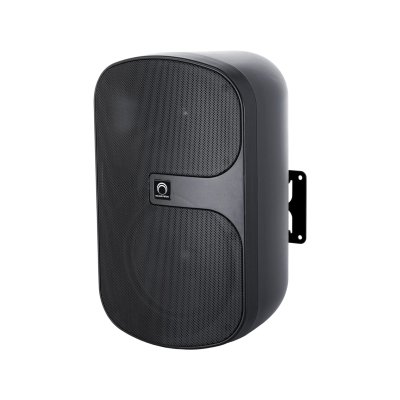

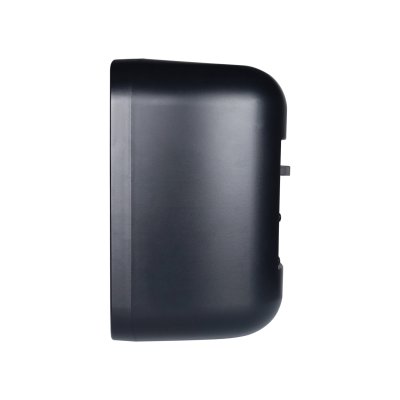

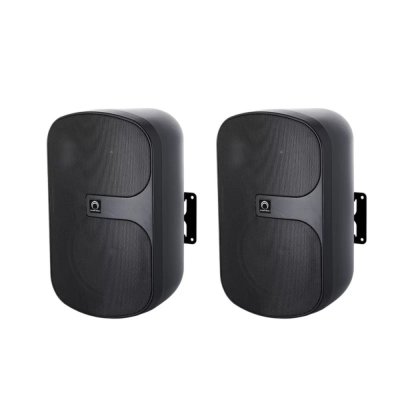

SOUNDVISION SVS-82WB / 8-inch two-way surface-mount speaker

Description
The SVS-82W is a new Passive two-way surface-mount speaker ideal for indoor and outdoor applications requiring high-quality sound. Model SVS-82W designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference rooms, bars and health clubs. Model SVS-82W are available in black, Transformer Taps 70V: 40W, 20W, 10W, 5W | 100V: 80W,40W, 20W, 10W available for constant voltage systems.
SVS-82W supports applications multiple
Meeting Room.
Conference Room.
Training Rooms.
Hotels.
Health clubs.
Retail shops.
Shopping malls & Plaza.
Restaurant & Bar.

FEATURE
Passive Two-Way Full-range Loudspeaker.
Elegant design.
High-quality sound.
Indoor and outdoor applications.
All-weather versatility IP54*
High sensitivity.
Transformer Taps 70V, 100V
8-inch LF transducer 65Watts rms
1-inch HF transducer 25Watts rms
Power Handling 180Watts
Frequency Response 45Hz ～ 20kHz
coverage H 90° x V 60°

Specification
All-weather versatility
IP54*
Color
Black
Input Connections
Euro block
Speaker Type
Full-range, Mid-High, Two-Way
Transformer Taps
70V : 40W, 20W, 10W, 5W | 100V : 80W, 40W, 20W, 10W  8Ω Bypass
Frequency Response
55Hz ～ 20kHz (-3dB)
45Hz ～ 20kHz (-10dB)
Sensitivity 1 W/1 m
94 dB
Max. SPL/1m (calc)
120 dB
Coverage (Nominal -6 dB) H
90° (±45°)
Coverage (Nominal -6 dB) V
60° (±30°)
System Power Handling
180W Max. / 90W continuous
LF Transducer
8-inch Waterproof Paper Cone (Glass fiber cone technology)
HF Transducer
1-inch (Silk dome)
Nominal Impedance (Passive)
8Ω
Indoor / Outdoor
Yes
Material
Engineering-plastics (ABS)
Dimensions (H x W x D mm)
240 x 335 x 390mm (without bracket)
Weight
11 Kg/ pair, 5.5 Kg / Single
