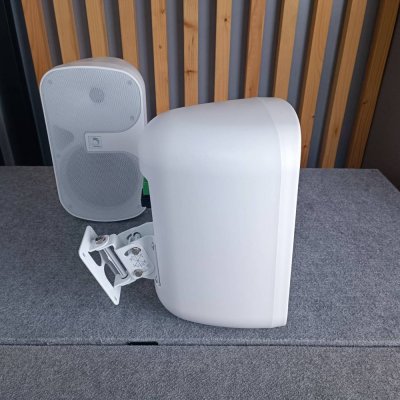

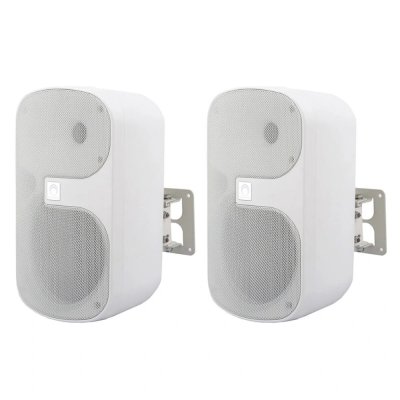

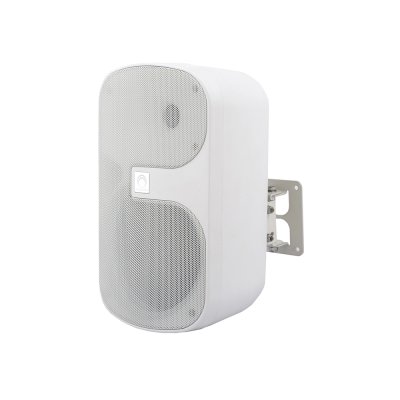

SOUNDVISION SVS-82WW / 8-inch two-way surface-mount speaker

Description
SVS-82WW is a new wall-mount two-way passive indoor installation loudspeaker 8 Ohm 70V/100V ideal for applications requiring high-quality sound. Designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference rooms, bars and health clubs.

FEATURE
Passive Two-Way Full-range Loudspeaker.
Elegant design.
High-quality sound.
Indoor and outdoor applications.
High sensitivity.
Transformer Taps 70V, 100V
8-inch LF transducer
1-inch HF transducer
Power Handling 160Watts
Frequency Response 55Hz ~ 20KHz (-10dB)
coverage H 100° x V 60°

SPECIFICATIONS

MODELS SVS-82WB | SVS-82WW

Speaker Type Full-range, Low-High, Two-Way

Transformer Taps 70V : 40W, 20W, 10W, 5W100V : 80W, 40W, 20W, 10W 8Ω Bypass

Frequency Response 60Hz ~ 20KHz (-3dB)55Hz ~ 20KHz (-10dB)

Sensitivity 1 W/1 m 89dB

Max. SPL/1m (calc) 120dB

Coverage (Nominal -6 dB) H 100° (±5°)

Coverage (Nominal -6 dB) V 60° (±5°)

System Power Handling 90W/180W(Max)

Driver LF Transducer 8 inch Glass Fiber Woven Cone Rubber Edge

Driver HF Transducer 1 inch Neodymium Soft Dome

Nominal Impedance (Passive) 8Ω

Input Connections Euroblock / screw terminal

Color Black / White

Indoor / Outdoor Indoor

Material ABS

Dimensions (H x W x D mm) 240 x 235 x 390mm (without bracket)

Weight 11 Kg/pair, 5.5 Kg / Single
