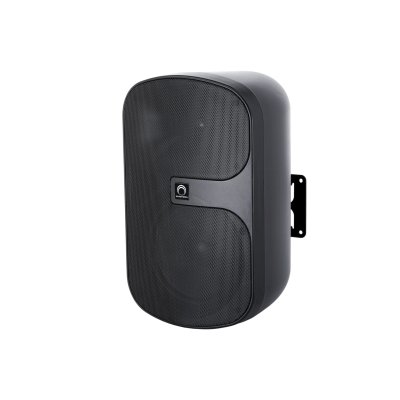

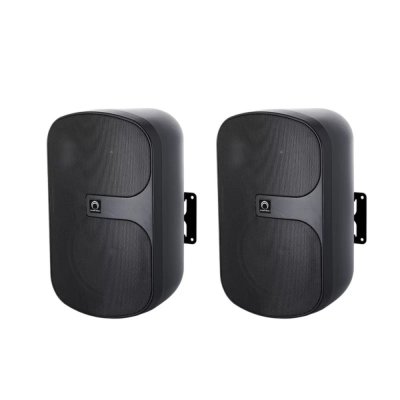

SOUNDVISION SVS-62WB / 6.5-inch two-way surface-mount speaker

Description
The SVS-62WB is a new Passive two-way surface-mount speaker ideal for indoor and outdoor applications requiring high-quality sound. Model SVS-62W designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference rooms, bars and health clubs. Model SVS-62W are available in black, Transformer Taps 70V : 40W, 20W, 10W, 5W | 100V : 80W, 40W, 20W, 10W available for constant voltage systems.

SVS-62WB supports applications multiple

Meeting Room.
Conference Room.
Training Rooms.
Hotels.
Health clubs.
Retail shops.
Shopping malls & Plaza.
Restaurant & Bar.

FEATURE
Passive Two-Way Full-range Loudspeaker.
Elegant design.
High-quality sound.
Indoor and outdoor applications.
All-weather versatility IP54*
High sensitivity.
Transformer Taps 70V, 100V
6.5-inch LF transducer 60Watts rms
1-inch HF transducer 20Watts rms
Power Handling 160Watts
Frequency Response 50Hz ～ 20kHz
coverage H 90° x V 60°

SPECIFICATIONS

MODELS SVS-62WB | SVS-62WW

Speaker Type Full-range, Low-High, Two-Way

Transformer Taps 70V : 40W, 20W, 10W, 5W100V : 80W, 40W, 20W, 10W 8Ω Bypass

Frequency Response 70Hz ~ 20KHz (-3dB)65Hz ~ 20KHz (-10dB)

Sensitivity 1 W/1 m 88dB

Max. SPL/1m (calc) 118dB

Coverage (Nominal -6 dB) H 100° (±5°)

Coverage (Nominal -6 dB) V 60° (±5°)

System Power Handling 80W/160W(Max)

Driver LF Transducer 6.5 inch Glass Fiber Woven Cone Rubber Edge

Driver HF Transducer 1 inch Neodymium Soft DomeNominal Impedance (Passive) 8Ω

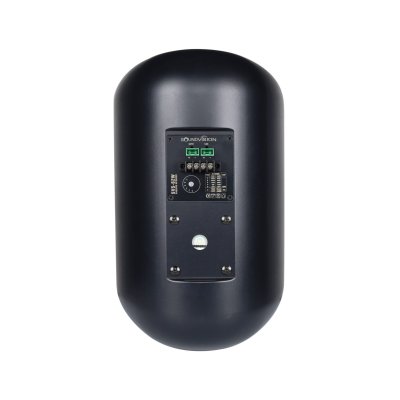

Input Connections Euroblock / screw terminal

Color Black / White

Indoor / Outdoor Indoor

Material ABS

Dimensions (H x W x D mm) 196 x 200 x 330mm (without bracket)

Weight 10 Kg/pair,5 Kg / Single
