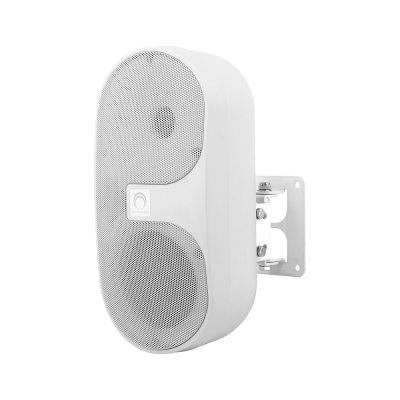

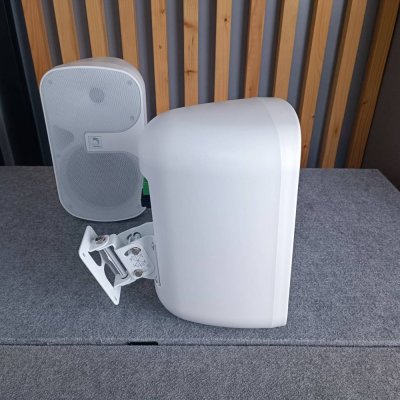

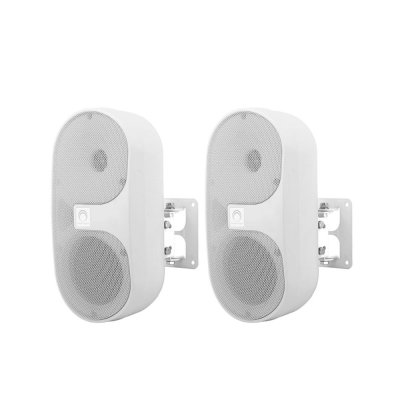

SOUNDVISION SVS-42WW / Wall-mount Installation Speaker

Description
SVS-42WW is a new wall-mount two-way passive indoor installation loudspeaker 8 Ohm 70V/100V ideal for applications requiring high-quality sound. Designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference rooms, bars and health clubs.

FEATURE
Passive Two-Way Full-range Loudspeaker.
Elegant design.
High-quality sound.
Indoor and outdoor applications.
High sensitivity.
Transformer Taps 70V, 100V
4 inch Glass Fiber Woven Cone Rubber Edge
1 inch Neodymium Soft Dome
Power Handling 80Watts (Max)
Frequency Response 80Hz ～ 20kHz (-10dB)
Coverage Angle (Nominal -6dB) H 90° x V 70° (±5°)

SPECIFICATIONS
MODELS SVS-42WB | SVS-42WW

Speaker Type Full-range, Low-High, Two-Way

Transformer Taps 70V : 20W, 10W, 5W, 2.5W100V : 40W, 20W, 10W, 5W 8Ω Bypass

Frequency Response 85Hz ~ 20KHz (-3dB)80Hz ~ 20KHz (-10dB)

Sensitivity 1 W/1 m 86dB

Max. SPL/1m (calc) 113dB

Coverage (Nominal -6 dB) H 90° (±5°)

Coverage (Nominal -6 dB) V 70° (±5°)

System Power Handling 40W/80W(Max)

Driver LF Transducer 4 inch Glass Fiber Woven Cone Rubber Edge

Driver HF Transducer 1 inch Neodymium Soft Dome

Nominal Impedance (Passive) 8Ω

Input Connections Euroblock / screw terminal

Color Black / WhiteI

ndoor / Outdoor Indoor

Material ABS

Dimensions (H x W x D mm) 145 x 147 x 295mm (without bracket)

Weight 5.6 Kg/pair, 2.8 Kg / Single
