SOUNDVISION SPA-1002P / Antenna Power Distribution System 450-1000MHz

FEATURE
Antenna suitable for 450 1000MHz frequency range.
Multi-channel receiving system, eliminating the spurious interference in multiple system usage.
Identifies and assigns optimal frequencies to receiver / transmitter pairs
With two input sockets, made specially for the receiver using in long distance, can compensate the loss signal which caused by connecting to the receiver with the same cable.

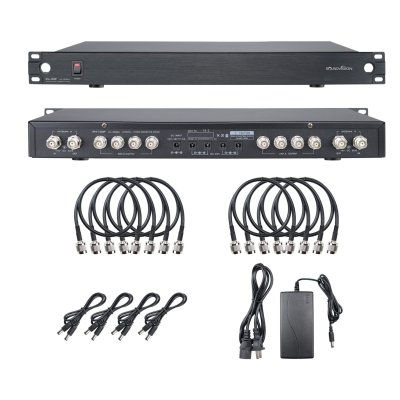

In the box includes :
x 1 SPA-1002P Antenna / Power Distribution System 450-1000MHz
x 8 TNC Cables (50 cm.)
x 4 DC Cables
x 1 AC Power Adapter

SPECIFICATIONS

Power requirements 12V DC

DC outputs 12V DC (x4)

Output current (total from all DC outputs) 5A maximum Frequency Range 450-1000 MHz

Impedance 50 Ω

Antenna input 50 Ω, 9V DC

Antenna output 50 Ω

Operating temperature range -20 °C to 60 °C

Connector Type TNC, Female

Dimensions (H x Wx D) 549 x 301 x 110 mm

Net Weight (include package) 3.85 Kgs
