SOUNDVISION SPA-1000A / Active directional antenna for wireless microphones

Description

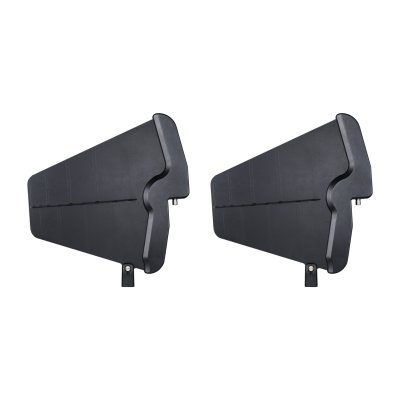

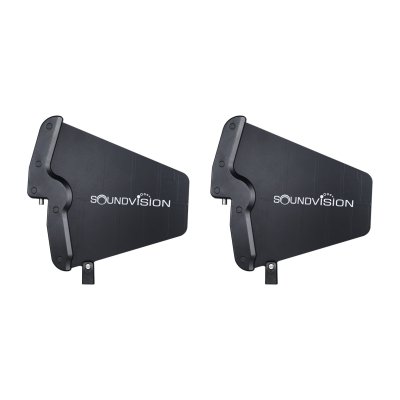

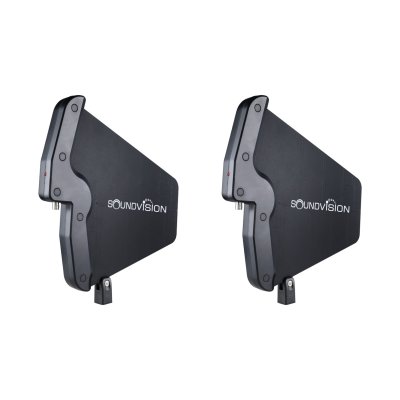

SPA-1000A Active directional antenna for wireless microphones. These antennas both improve reception of Wireless transmitter signals and minimize interference receivers with appropriate installed placement. Supports a professional TNC connector The antenna has waterproof construction and can be used for indoor and outdoor applications. The SPA-1000A can be mounted on a microphone stand.
Compatible with SPA-1002P

FEATURE
Antenna suitable for 470-1000MHz frequency range.
Supports a professional TNC connector.
Improved wireless reception (10dB) of active directional antenna gain.
Reduced interference.
Improved RF signal-to-noise ratio.
In the box includes :
x 2 Antennas SPA-1000A active directional antenna
x 2 TNC Cables (5 m.)
x 1 User Manual

SPECIFICATIONS

Frequency Range 470-1000 MHz

Voltage Standing Wave Ration (VSWR) <21 I

mpedance 50 Ω

Antenna Gain >3 dBi, typical

Efficiency 50%, typical

Reception Pattern (3dB Beam Width) 90° vertical, 180° horizontal

Connector Type TNC, Female

Dimensions (H x Wx D) 369 x 361 x 57 mm

Net Weight (include package) 1 Kg
