EMOTIVA BasX MR1L 9.2 Channel Dolby Atmos&DTSX

EMOTIVA BasX MR1L 9.2 Channel Dolby Atmos® & DTS:X Cinema Receiver

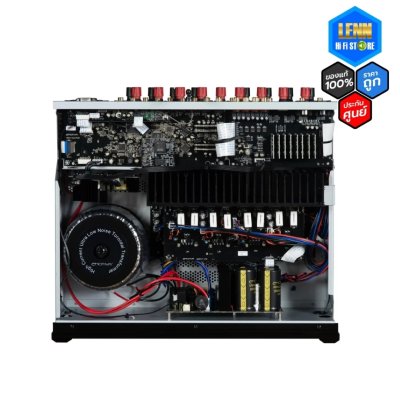

The amplifier section of the BasX MR1L features 9 channels of audiophile-grade Class A/B amplification, powered by a massive 660 VA toroidal transformer, to deliver superb sound quality and cool reliable operation. The MR1L exhibits complete control over difficult loads and low impedance speakers, leaving less capable receivers gasping for air. The MR1L also includes a full set of line level 13.2 channel preamp outputs, and of course, the amplifier section can be totally disabled if you wish to use the MR1L as a dedicated surround sound processor.
The BasX MR1L is a true audiophile component, designed and built by professionals to deliver the outstanding performance that both audiophiles and casual listeners can appreciate. The MR1L also features precision high- speed video switches that route video directly from the selected input to the output without any extraneous processing, ensuring that youll continue to get the absolute best possible picture quality from your HD and 4k UHD video sources along with support for both ARC and Enhanced eARC. The BasX MR1L delivers a truly stellar video and listening experience with incredible power, build quality, and ease of use.

Specifications
Line Level Analog Outputs (Preamp Outputs)
Rated Output Voltage: +6 dBV (2 VRMS)
Frequency Response: 20 Hz to 20 kHz +/- 0.05 dB
Total Harmonic Distortion: < 0.0025% @ 1 kHz < 0.05% from 20 Hz to 20 kHz
Signal to Noise Ratio: > 100 dB @ 1 kHZ
Crosstalk: < 85 dB @ 10 kHZ
Speaker Outputs (Amplifier Section)
Power Output Per Channel; ONE channel driven: 150 watts RMS / channel @ 8 Ohms; 220 watts RMS / channel @ 4 Ohms; < 0.1% THD
Power Output Per Channel; TWO channels driven: 140 watts RMS / channel @ 8 Ohms; 200 watts RMS / channel @ 4 Ohms; < 0.1% THD
Power Output Per Channel; FIVE channels driven: 110 watts RMS / channel @ 8 Ohms; 140 watts RMS / channel @ 4 Ohms; < 0.1% THD
Power Output Per Channel; NINE channels driven: 85 watts RMS / channel @ 8 Ohms; 100 watts RMS / channel @ 4 Ohms; < 0.1% THD
Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ 0 / - 0.15 dB) or better
Broad Band Frequency Response: 5 Hz to 80 kHz (+ 0 / - 3 dB)
THD + Noise: < 0.02% (A-weighted); at rated power; 1 kHz; 8 Ohms
Signal To Noise Ratio (8 Ohm Load): > 105 dB or better; referenced to rated power (A-weighted)
Minimum Load Impedance: 4 Ohms (one 4 Ohm speaker or two paralleled 8 Ohm speakers)
Damping Factor: > 400
Power Requirements: 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected)
Dimensions: 17 wide x 5+1/2 high x 14 deep (without connectors), 20" wide x 10" high x 22" deep
Weight: 33 lbs. (unboxed), 42 lbs. (boxed)
