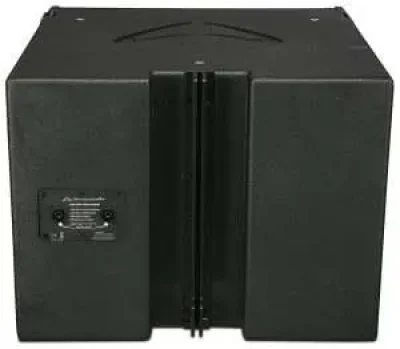

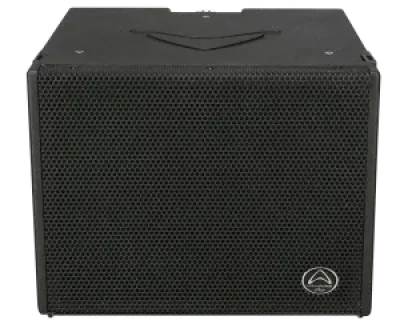

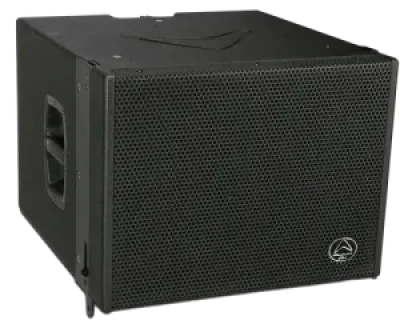

Wharfedale Pro WLA-210X SUB

WLA-210SUB | WLA-210 System SMALL ON SIZE, BIG ON SPL
Portable, powerful and versatile line array solutions that are ideal for both touring and fixed installation applications
The WLA-210SUB delivers the low-end punch to the WLA-210 line array system. At its heart is a custom-made 15 Wharfedale Pro LF driver with an impressive 3 voice coil. This driver can deliver up to 133dB Max SPL @ 1m. The new WLA-210X line array system keeps the same design philosophies as the acclaimed WLA-25 and WLA-28 systems from Wharfedale Pro. Portable, powerful and versatile line array solutions that are ideal for both touring and fixed installation applications. Each WLA-210X element uses a pair of custom 10 Wharfedale Pro high-power low-frequency drivers, while the high frequencies are handled by a premium 3.0 titanium diaphragm, neodymium magnet compression driver coupled to a 100° x 10° waveguide.

The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source resulting in greatly reduced destructive interaction within the array.

The WLA-210X element also features Passive and Bi-amp modes which allow for complete system control
The WLA-210X element also features Passive and Bi-amp modes which allow for complete system control. The bi-amp feature enables the system designer to select the best amplification for each driver component within the array. Such control, when used with external signal processing such as the Wharfedale Pro Versadrive series, gives the sound engineer the ultimate in system fine-tuning. This, in turn, leads to the best audio output.

The WLA-210SUB delivers the low-end punch to the WLA-210 line array system
Custom Wharfedale Pro 15 driver delivers huge and impressive bass performance from a compact and portable cabinet
The custom-made 15 driver delivers the low-end punch for the WLA-210 line array system. The driver is also highly efficient with a sensitivity of 102dB. This results in more power being converted to low-end bass. With a peak power handling of 4800w, do not be deceived by the physical size of the WLA-210SUB. It delivers huge and impressive bass performance from a compact and portable cabinet.

3-way Versadrive SC-36 presets
To help you setup a WLA-210 / WLA-210SUB system quickly and accurately, there is a preset template file for the SC-36 Versadrive Matrix Controller. This can be freely downloaded from the downloads section of this webpage and can be installed into the Wharfedale Pro SC-36.

Key Features of WLA-210SUB Subwoofers
15 Subwoofer
133dB Max SPL @ 1m
18mm Birch plywood construction
Integral, side plate adjustable rigging system
4 carry handles
4800w peak
2400w programme
1200w continuous
8Ω impedance
For medium and large mobile events
