Wharfedale Pro DP-2200F Amplifier

Description

DP-2200F

2 channels
8 Ohm 2 x 2000 W
4 Ohm 2 x 3400 W
2 Ohm 2 x 4760 W
16 Ohm Bridged 1 x 4000 W
8 Ohm Bridged 1 x 6800 W
4 Ohm Bridged 1 x 9520 W
100 V Hi-Z 2 x 3400 W
70 V Hi-Z 2 x 2400 W


DP-F Series

Huge Class D power in a 1U rack
4 discrete amplification channels
Internal DSP and computer control
Stable down to 2 Ω. Drive multiple speakers or line array elements
FIR filtering with 512 taps
90 V to 260 V AC working voltage
Ethernet Network Connectors x 2
70 V / 100 V compatible models

TAKE CONTROL

Harnessing the power of the internal DSP

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.

It is simple to monitor and edit the DP-F remotely.



FIR FILTERS

FIR Filtering gives

Independent control of magnitude and phase.
More detailed equalisation.
Optimization of frequency and power response.

STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms

The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.


ETHERNET X 2

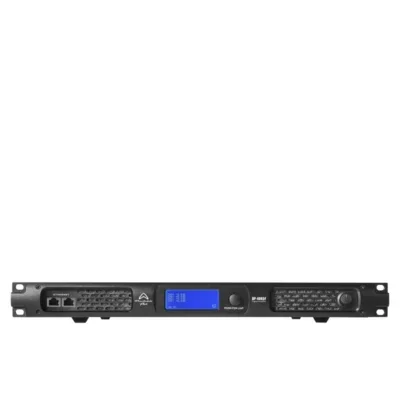

Control is via the Ethernet network connectors on the front.

With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.


BUILD YOUR SYSTEM
DP-F and DP-N amps are made for your big line array!

With just 3 pcs of DP-4100F or DP-4100Nmassive systems can be created.


70 V / 100 V READY
In this high impedance system example, the DP-2200F can drive up to 100 pcs of i8T loudspeakers.This configuration can also drive LESS than 100 pcs of i8T. Any number between 2 or 100 !

When switched to 100 V mode, DP-N (F) models have Peak Limiter and RMS Limiters set automatically. Only the HPF needs setting in the EQ section.
