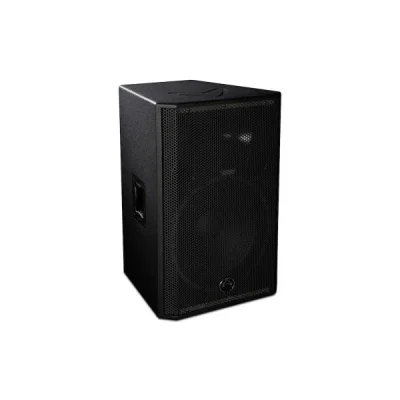

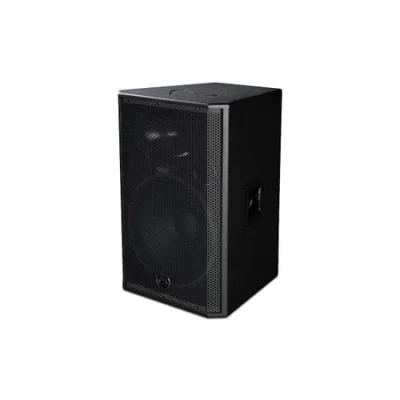

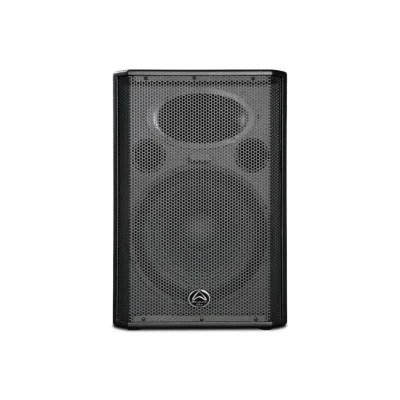

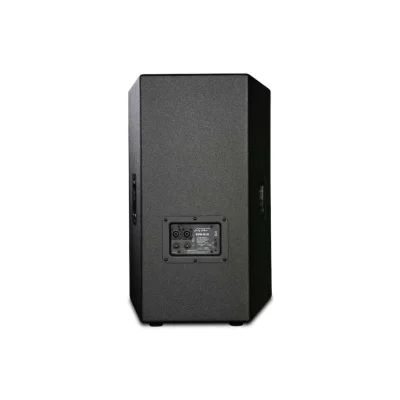

Wharfedale Pro EVO-X15

Wharfedale Pro EVO-X15
รายละเอียดสินค้า

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between our Impact Series and the Delta Series of passive loudspeakers, EVO-X is a new multipurpose lineup of 8 models featuring many useful and practical design elements.

All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro boomerang logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free.

Full range models feature a unique +3dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.

Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.

Simply - great sounding and reliable PA!

SPECIFICATIONS
Model name
EVO-X15
System Type
Passive
Configuration
2-way
Frequency Response (+/-3dB)
45Hz-20kHz
Frequency Range (-10dB)
40Hz- 20kHz
Sensitivity (2.83v/1m)
98dB
System rated impedance
8Ω
Calculated Maximum SPL @1m
130dB
Low Frequency Transducer

Size
381mm / 15"
Voice coil size
64.26mm / 2.5"
Rated impedance
8Ω
LF Power (re:AES-2012)
350w
Hi Frequency Transducer

HF Driver type
Compression driver
Voice coil size
44.5mm / 1.75"
Exit size
25mm / 1"
Diaphragm Material
Titanium
Rated impedance
8Ω
HF Power (re:AES-2012)
40w
Nominal coverage
90° x 60°
Power

System continuous power
350w
System programme power
700w
System peak power
1400w
Crossover Frequency
2.2kHz
Input connectors
2 x NL4 (speakON Compatible) + 2 x 1/4" Jacks
Hardware

Pole mount
Dual Angle (0 or 10) 35mm Pole Socket
Handles
2 on sides
Enclosure

Enclosure material
MDF
Finish
Rhino rock paint
Grille material and finish
1.2mm steel
Dimensions - unpacked

Height
675mm / 26.57"
Width front
460mm / 18.11"
Width rear
294.5mm / 11.59"
Depth
450mm / 17.72"
Dimensions - packed

Height
750mm / 29.53"
Width front
524mm / 21.02"
Width rear
324mm / 12.76"
Depth
486mm / 19.13"
Weight

Net weight
24.7kg / 54.3lbs
Gross weight
28.4kg / 62.3lbs
