Wharfedale Pro DELTA-X15 / DELTA X SERIES REFINEMENT IN DETAIL

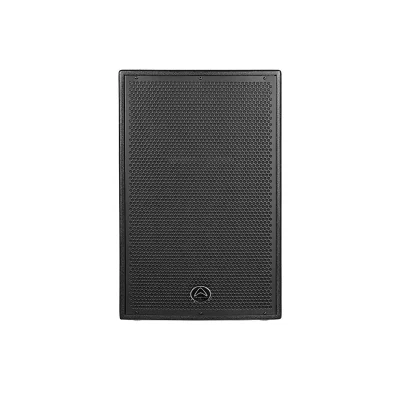

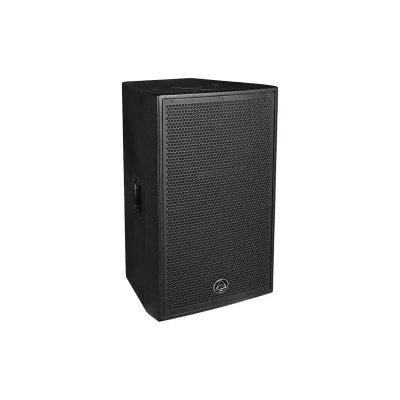

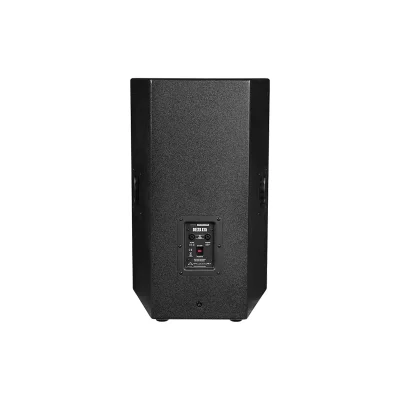

Wharfedale Pro Delta-X 15
Wharfedale Pro Delta-X 15 ลำโพงขนาด 15 นิ้ว เป็นลำโพงแบบ Passive 2-Way ขนาดดอกลำโพง 15 นิ้ว, 2 นิ้ว titanium compression driver

คุณสมบัติ
การขับ อยู่ที่ 500 วัตต์ RMS
ความดังสูงสุด 131dB Max SPL
ตอบสนองความถี่ 50 Hz 20 kHz (+/-3dB)
ขนาดวูฟเฟอร์ 1 x 15นิ้ว, 2 นิ้ว titanium compression driver

SPECIFICATIONS

Model Name
DELTA-X15
System Type
Passive
Configuration
Two-way
Frequency Response (+/-3dB)
50-20KHZ
Frequency Range (- 10 dB)
45-20KHZ
Sensitivity (2.83v/1m)
98dB
Calculated Maximum SPL @1m
131dB
System Rated Impedance
8Ω
Low Frequency Transducer

Size
404mm / 15 Paper
Voice-Coil Size
77.1mm / 3
Rated Impedance
8Ω
LF Power (re:AES2-2012)
500W
High Frequency Transducer

HF Driver Type
Compression Driver
Voice-Coil Size
50.8mm / 2 Titanium
Exit Size
35.6mm / 1.4
Diaphragm Material
Titanium
Rated Impedance
8Ω
HF Power (re:AES2-2012)
50W
Nominal Coverage (H x V)
90 x 45
Power

System Continuous Power
500W
System Programme Power
1000W
System Peak Power
2000W
Crossover frequency
1.8kHz
Input Connector
2 x NL4 (speakON Compatible)
Hardware

Pole Mount
Dual Angle (0 / 10) 35mm Socket
Handles
2 on Sides
Enclosure

Enclosure Material
15mm Plywood
Finish
black paint
Grille Material & Finish
1.5 mm Steel Black
Dimensions Unpacked

Height
700mm / 27.6
Width Front
446mm / 17.6
Width Rear
281.4mm / 11.1
Depth
406mm / 16.0
Dimensions Packed

Height
803mm / 31.6
Width Front
622mm / 24.5
Width Rear
622mm / 24.5
Depth
498mm / 19.6
Weight

Net Weight (kg / lbs)
29.9kg / 65.9lbs
Gross Weight (kg / lbs)
35.5kg / 78.1lbs
