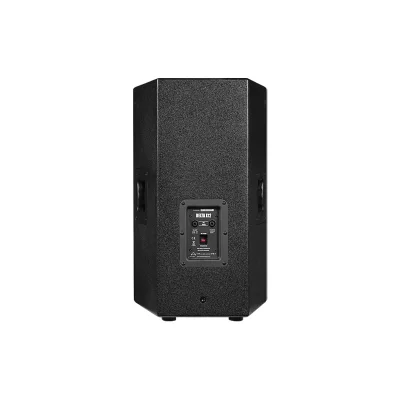

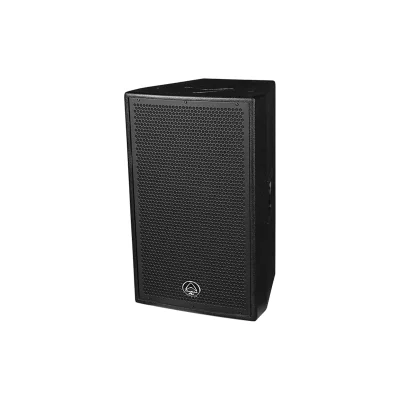

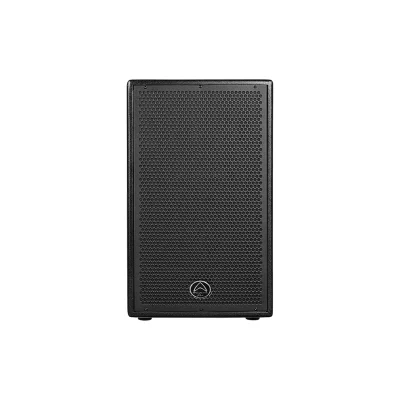

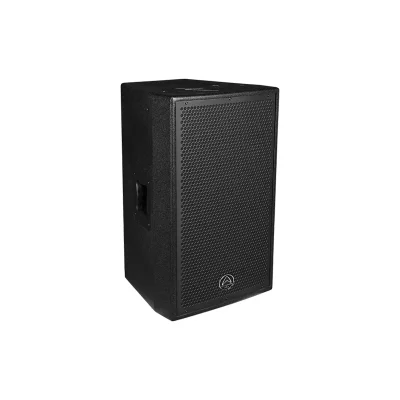

Wharfedale Pro DELTA-X12 / DELTA X SERIES REFINEMENT IN DETAIL

Wharfedale Pro Delta-X 12
Wharfedale Pro Delta-X 12 ลำโพงขนาด 12 นิ้ว เป็นลำโพงแบบ Passive 2-Way ขนาดดอกลำโพง 12 นิ้ว, 2 นิ้ว titanium compression driver

คุณสมบัติ
การขับ อยู่ที่ 400 วัตต์ RMS
ความดังสูงสุด 129dB Max SPL
ตอบสนองความถี่ 60 Hz 20 kHz
ขนาดวูฟเฟอร์ 1 x 12นิ้ว, 2 นิ้ว titanium compression driver

SPECIFICATIONS

Model Name
DELTA-X12
System Type
Passive
Configuration
Two-way
Frequency Response (+/-3dB)
60-20kHZ
Frequency Range (- 10 dB)
55-20kHZ
Sensitivity (2.83v/1m)
97dB
Calculated Maximum SPL @1m
129dB
System Rated Impedance
8Ω
Low Frequency Transducer

Size
332mm / 12 Paper
Voice-Coil Size
77.1mm / 3
Rated Impedance
8Ω
LF Power (re:AES2-2012)
400W
High Frequency Transducer

HF Driver Type
Compression Driver
Voice-Coil Size
50.8mm / 2 Titanium
Exit Size
35.6mm / 1.4
Diaphragm Material
Titanium
HF Power (re:AES2-2012)
50W
Nominal Coverage (H x V)
90 x 45
Power

System Continuous Power
400W
System Programme Power
800W
System Peak Power
1600W
Crossover frequency
1.8kHz
Input Connector
2 x NL4 (speakON Compatible)
Hardware

Pole Mount
Dual Angle (0 / 10) 35mm Socket
Handles
2 on Sides
Enclosure

Enclosure Material
15mm Plywood
Finish
black paint
Grille Material & Finish
1.5 mm Steel Black
Dimensions Unpacked

Height
630mm / 24.8
Width Front
390mm / 15.3
Width Rear
241.2mm / 9.5
Depth
373mm / 14.7
Dimensions Packed

Height
773mm / 28.9
Width Front
566mm / 22.3
Width Rear
566mm / 22.3
Depth
464mm / 18.3
Weight

Net Weight (kg / lbs)
24.7kg / 54.5lbs
Gross Weight (kg / lbs)
29.0kg / 63.8lbs
