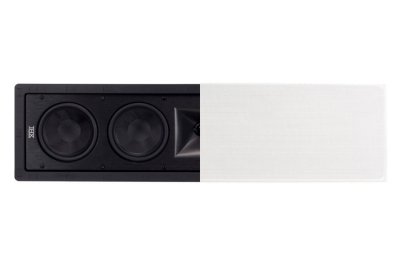

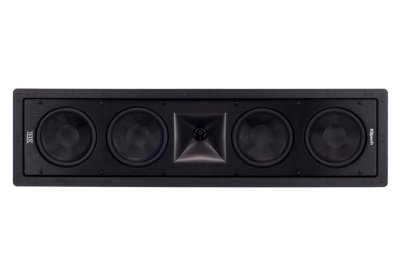

Klipsch THX-504-L In-Wall Speaker

THX® SELECT CERTIFIED

Delivers effortless dynamic range and brings superior sound to larger areas
thanks to its highly regarded THX Select certification. It not only delivers
consistent compelling audio to larger-sized rooms it also brings real cinema
sound to the comforts of home without taking up any floor space.

CINEMA QUALITY SOUND
Employs high output fiberglass woofers for powerful bass impact, while
a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90
square Tractrix® Horn generates flat in-room frequency response with high
efficiency and low distortion.

MAXIMUM INSTALLATION RELIABILITY
This in-wall speaker also consistently delivers thrilling, realistic sound,
whether it's installed horizontally or vertically. It features sure-grip
mounting dogs that provide even pressure against drywall for longterm installation reliability, and includes a paintable grille that blends in
perfectly with any décor.

UNLIMITED FLEXIBILITY
Timbre matched to all of our THX-certified products, so you can mix and
match to create an unbeatable, discreet stereo or home theater system
that's just right for you.

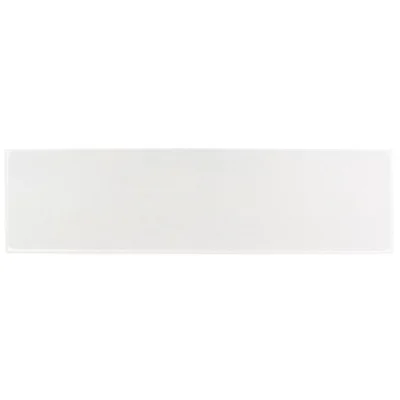

EDGE-TO-EDGE GRILL
Covering the whole of the speaker makes painting the product both
simpler and quicker. Premium Neodynium magnets make it easy to install
and remove and ensure a secure and flush fit without any moving parts.
The flat grill allows better harmonization with today's modern interior
designs and disap

SPECIFICATION:
SYSTEM: 2-way In-wall
FREQUENCY RESPONSE: 46Hz-20kHz +/-3dB
POWER HANDLING (Cont/Peak): 100W/400W
RECOMMENDED AMP POWER: 150W
SENSITIVITY: 92dB @ 2.83V / 1m
IMPEDANCE: 8 Ohms switchable
HIGH FREQUENCY DRIVER: 1" (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn
HIGH FREQUENCY CROSSOVER: 2100Hz & 1200Hz
LOW FREQUENCY DRIVER: Dual 5.25" (13.3cm) high-output, fiberglass cone woofers
ENCLOSURE MATERIAL: MDF & Aluminum motorboard /ABS frame
ENCLOSURE TYPE: Infinite baffle, front flush with wall
HOLE DIMENSION: 16.5" (41.9cm) H x 6.5" (16.5cm) W
DIMENSIONS: 17.75" (45.1cm) H x 8" (20.3cm) W
MOUNTING DEPTH: 3.75" (9.5cm)
WEIGHT: 9.6lbs (4.4kg)
FINISH: White paintable grill
Specifications:
Construction type: 2-vejs indbygningshøjttaler
Impedance: 8 Ohm
Frequency response: 46 - 20.000 Hz
Rated power, nominel: 150 Watt
Rated power, peak: 600 Watt
Sensitivity: 92 dB
Tweeter: 1" Titanium kompressions driver i Tractrix Horn
Bas driver: 4 x 5,25" med glasfiber membran
Connection type: Single-wire terminaler
Dimensions, product (LxWxH): 16,5 x 9,5 x 69,2 cm.
Net weight: 8,3 kg.
