KLIPSCH THX-5000-LCR ลำโพงโรงหนัง high-performance cinema speaker

Klipsch THX-5000-LCR

By using the same research and development used to create its professional cinema systems, Klipsch has developed the THX-5000-LCR loudspeaker to create real theater-style sound in the comforts of home. As part of the THX® Ultra2 family, this LCR reproduces all the passion that the filmmakers originally intended.

Sealed enclosure
Top-of-the-line internal wiring
Dual 5.25-inch Cerametallic woofers
1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix Horn

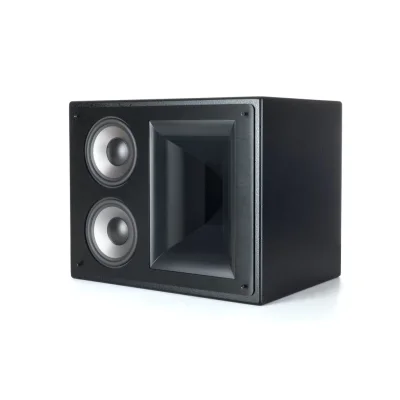

As the smaller of the two LCR speakers in the Ultra2 family, the highly efficient THX-5000-LCR features a sealed enclosure, top-of-the-line internal wiring, dual 5.25-inch Cerametallic woofers and a 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn.

The THX-5000-LCR enclosure has the same dado and rabbet construction used in Klipsch professional speakers ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points on this loudspeaker facilitate wall or ceiling mounting using standard hardware.

Available in a custom Galaxy black finish with an aluminum fascia, the THX-5000-LCR delivers dynamic audio experiences that draw listeners into the middle of live concerts and action packed movies.



Specifications

Crossover Frequency: 1500Hz
Dimensions: 12.75 (32.4cm) H x 16 (40.6cm) W x 12.5 (31.8cm) D (w/ grille)
Enclosure Material: Medium density fibreboard construction (MDF)
Enclosure Type: Sealed
Finishes: Galaxy Black cabinet with Black anodized aluminum fascia
Frequency response: 80Hz-20kHz (+-)3dB
High Frequency Horn: 10 x 6 rectangular 90 x 60 Tractrix Horn

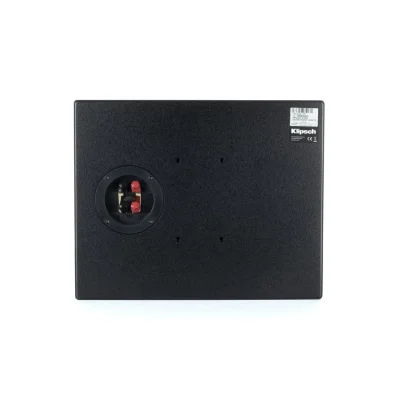

Input connections: 2 sets of binding post speaker terminals (connected via brass strap jumpers)
Mounting: 4-bolt pattern, 1/4-20 thread
Nominal impedance: 8 ohms compatible
Power handling: 100w max continuous (400 w peak)
Sensitivity: 94dB @ 2.83 volts / 1 meter
Tweeter: 1 (2.5cm) magnetically shielded, titanium dome compression driver with 9.6oz ceramic magnet structure
Woofer: Two 5.25 (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame drivers
UPC: 743878042511
