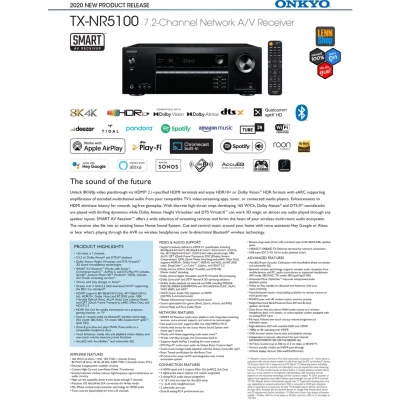

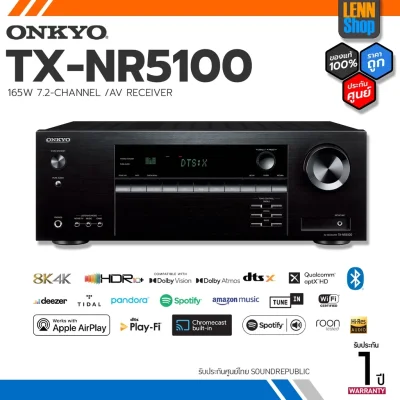

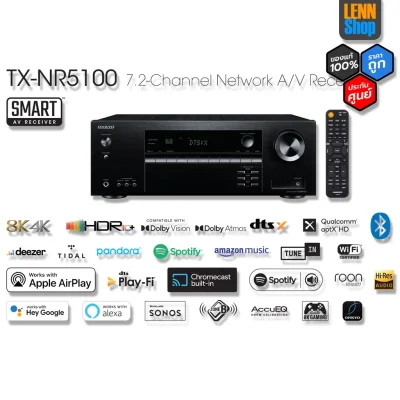

ONKYO TX-NR5100 / 7.2 CH 165W

165 watts x 7 channels
5.2.2-ch Dolby Atmos® and DTS:X® playback
Dolby Atmos Height Virtualizer and DTS Virtual:X
3D sound virtualization technologies
SMART AV Receiver Works with Sonos*1,
Chromecast built-in, AirPlay 2, and DTS Play-Fi®; includes
Spotify®, Amazon Music HD*2, Pandora®, TIDAL, Deezer,
and TuneIn streaming services*3
Works with Hey Google or Alexa*4
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting
the 802.11ac standard*5
HDMI® supports 8K/30p(4:2:0/12-bit), 4K/120p(4:2:0/12-
bit), HDR10+, Dolby Vision and BT.2020 color; VRR
(Variable Refresh Rate), ALLM (Auto Low Latency Mode),
and QFT (Quick Frame Transport); eARC (Main Out), and
HDCP 2.3
HDMI Sub Out for media transmission to a projector,
gaming monitor, or TV
Send or receive audio via Bluetooth® wireless technology
(RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX/
aptX HD)
Zone B pre-/line-out plays MAIN Zone audio to a
compatible headphone dock
Vocal Enhancer, media info and playback status display, and
one-touch volume memory-preset functions
AccuEQ with AccuReflex and subwoofer EQ

SPECIFICATIONS
Amplifier Section
Power output (All channels)
165 W/Ch
(6 ohms, 1 kHz, 10% THD, 1-ch driven)
80 W/Ch (8 ohms, 20 Hz20 kHz,
0.08% THD, 2-ch driven, FTC)
Dynamic power 160 W (3 ohms, Front)
125 W (4 ohms, Front)
85 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz20 kHz,)
Input sensitivity and impedance
200 mV rms/32 k-ohms (Line)
Rated RCA output level and impedance
200 mV rms/2.2 k-ohms (Zone B line-out)
Frequency response 10 Hz100 kHz/+1 dB,
-3 dB (Direct/Pure Audio)
Tone control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A)
Speaker impedance 416 ohms
Tuner Section
Tuning frequency range
FM 87.5 MHz107.9 MHz
AM 530 kHz1,710 kHz
FM/AM preset memory 40 stations
General
Power supply AC 120 V~, 60 Hz
Power consumption (operating)
490 W
Power consumption (idle) 45 W
Power consumption (standby)
0.1 W
Dimensions (W x H x D) 17 1/8˝ x 6 5/16˝ x 12 15/16˝
(435 x 160 x 328 mm)
Weight 18.5 lbs. (8.4 kg)
UPC CODE
(B) 889951003564
CARTON
Dimensions (W x H x D) 20 11/16˝ x 9 7/16˝ x 15 15/16˝
(525 x 240 x 405 mm)
Weight 23.1lbs. (10.5 kg)
